Peak

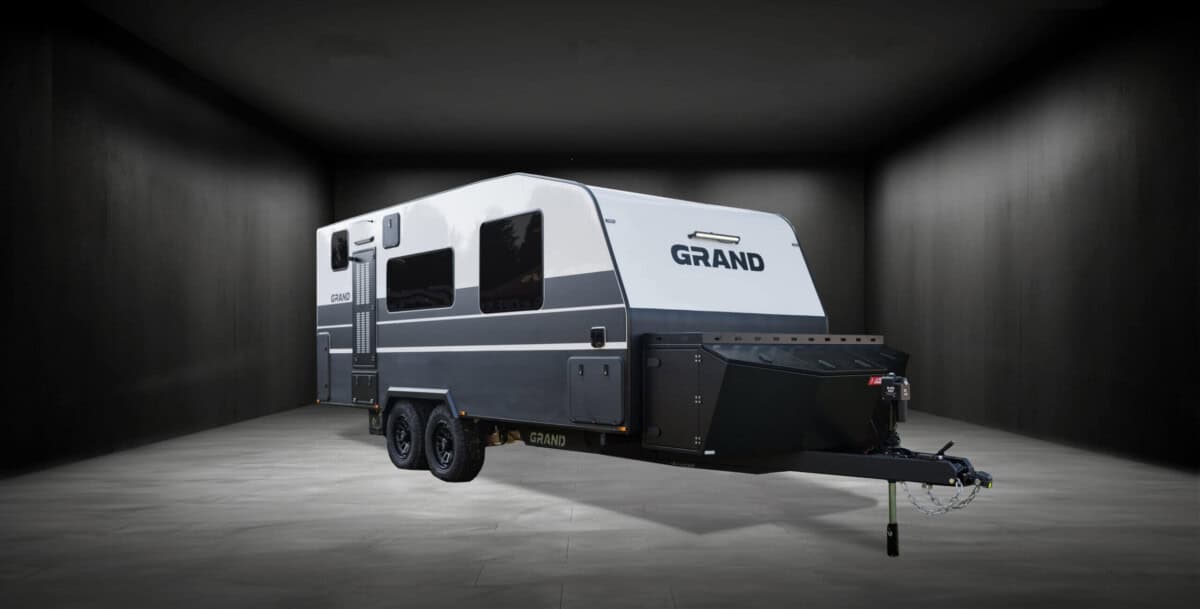

Introducing the Peak – Our full off grid caravan built for true outback adventure. It’s ready to take you off the beaten track in comfort and confidence.
Grand Caravans Peak Specifications
Chassis
- Built by FP Chassis with Australian Made Steel
- AL-KO Electronic Stability Control
- Cruisemaster XT Freestyle Coil Suspension (Australian Made)
- 6 inch Extended A-Frame
- One Piece Honeycomb Composite Floor
- Cruisemaster DO35
- Corner Drop Down Stabiliser Legs
- Trail Safe Bluetooth Break-Away Safety System
- 16 inch Wheels
- All Terrain Tyres (265/75/R16)
- 3 Arm Rear Bumper
- Kojack Hydraulic Caravan Jack with Wheel Brace
External Features
- Fibreglass Composite Sandwich Panel Construction
- Large Tri-Lock Entry Door (Midge Proof with Compression Lock)
- Illuminated Grab Handle
- Double Glazed Flat Aluminium Windows with Flat Block Out Blinds & Flyscreen

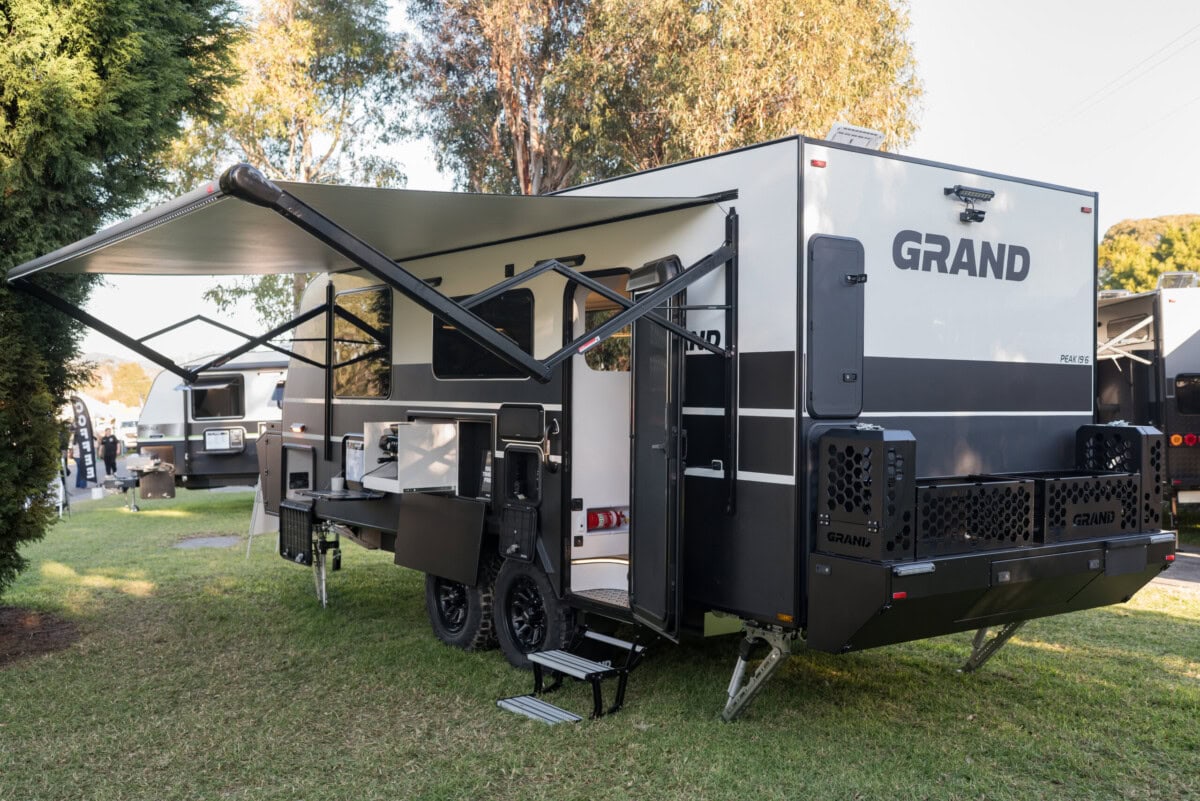

- Aussie Traveller Roll Out Awning
- Fold Down Picnic Table
- External Entertainment Box
- Aluminium Double Pull Out Step
- Tunnel Boot with internal lights on both sides
- External Pantry with 2 way drawers
- Toolbox Ultra Dual Slide Out & Gas Enclosure
- 2 x Rear Mud Flaps
Internal Features
- Matte Black Concealed Flush Handles

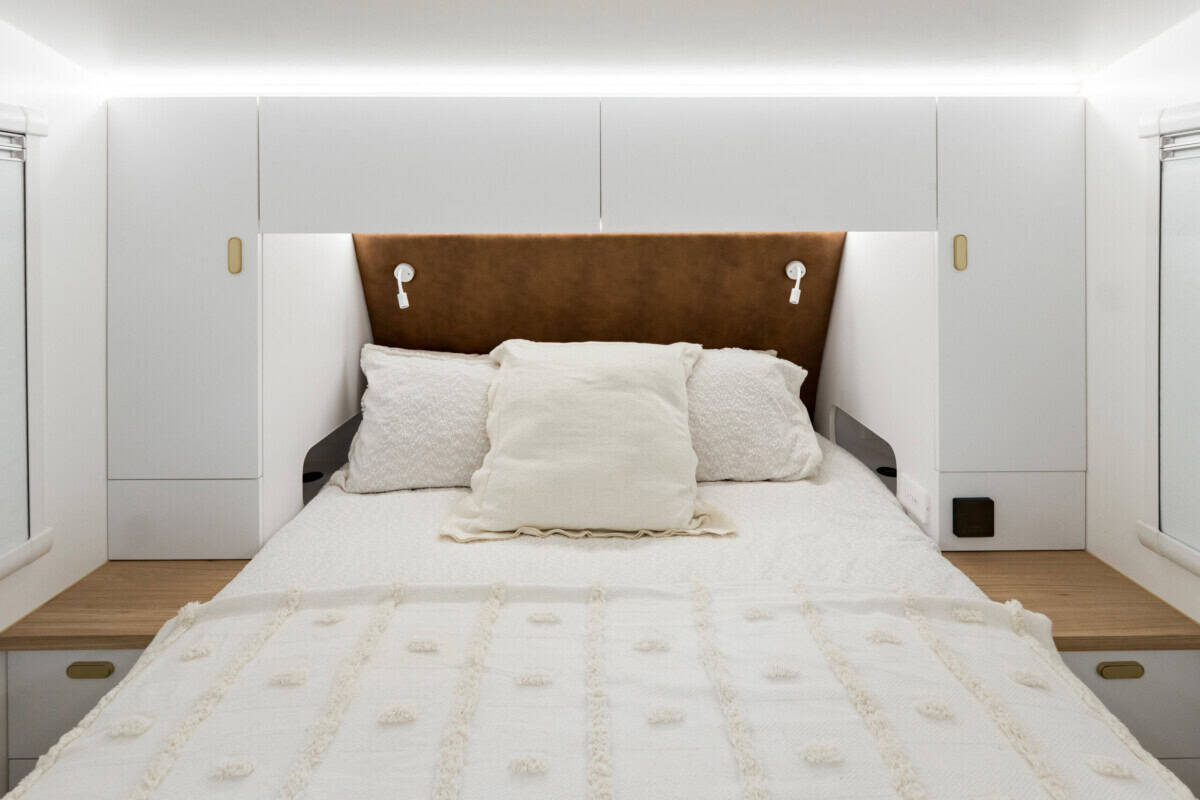

- Comfortable Pocket Coil Queen Bed
- Full Height Upholstered Bedhead
- Pigeon Hole Storage on Bed Sides
- Matte Black Bathroom Door Frames

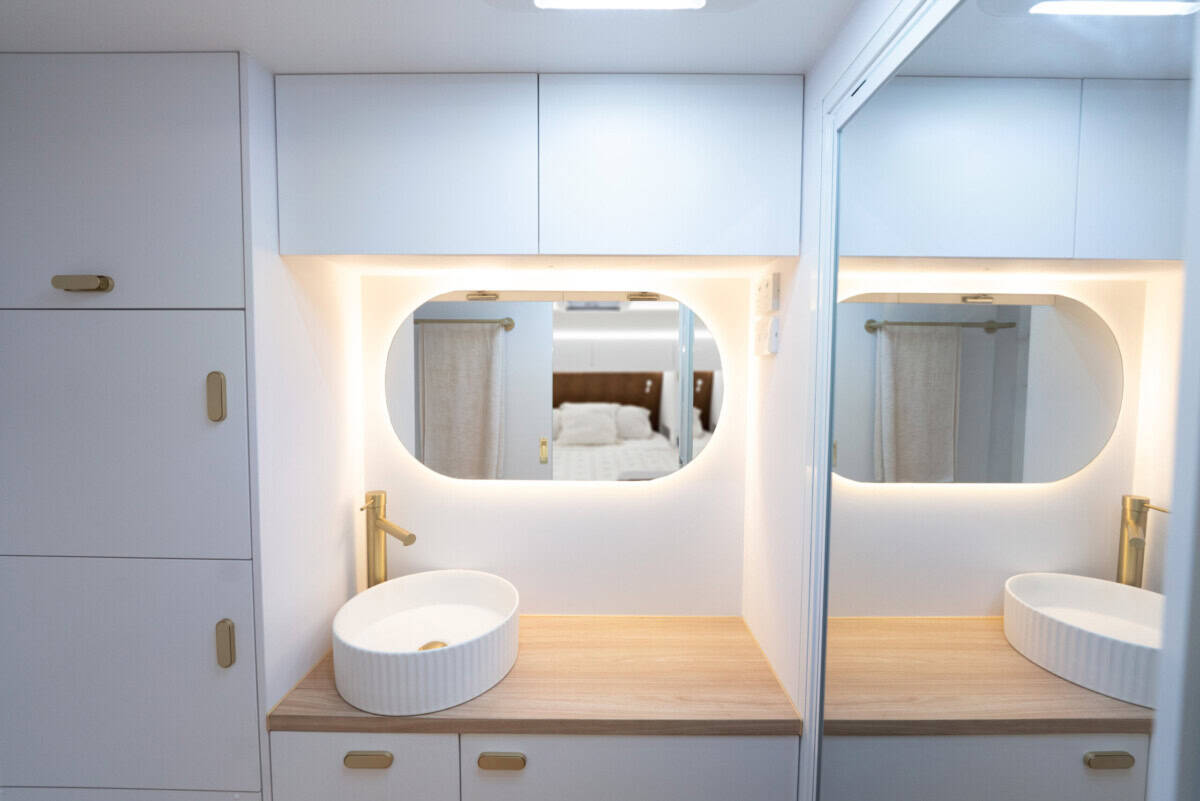

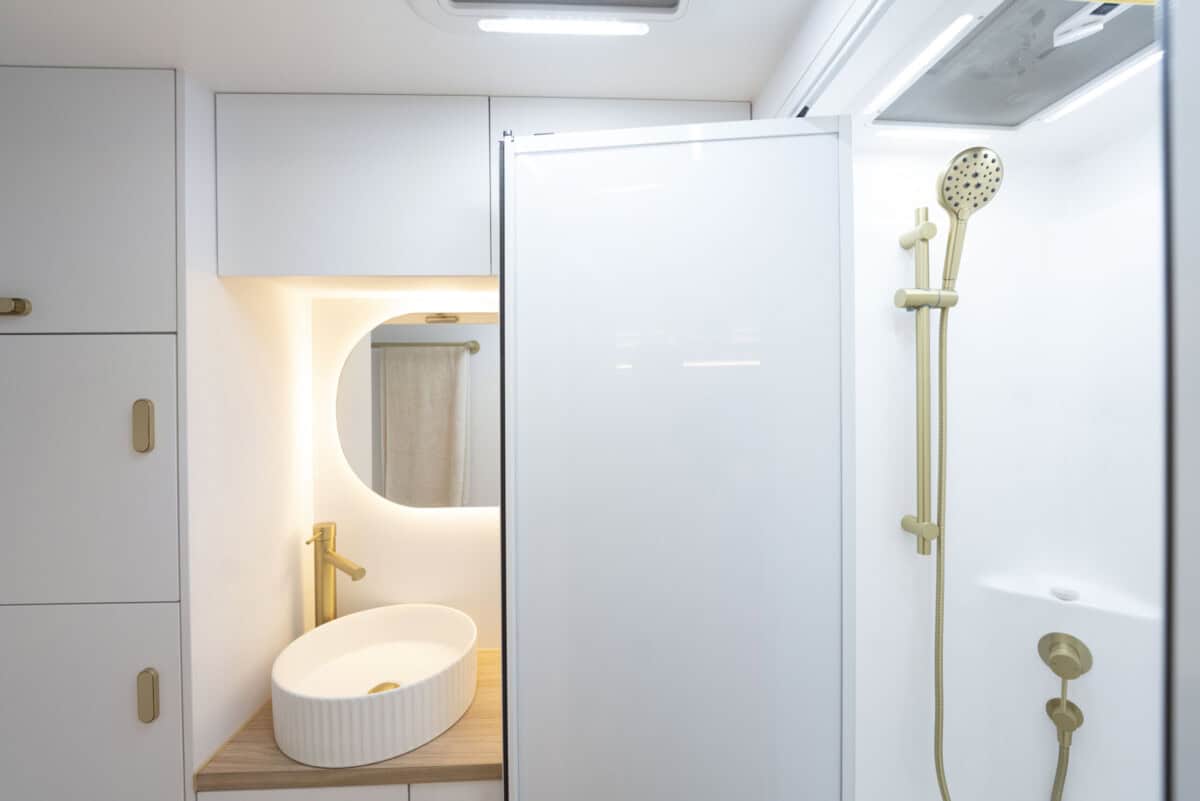

- Curved LED Mirror in Bathroom
- Fibreglass Shower
- 2 Illuminated Roof Vents
- Premium Vinyl Flooring
- Timber or Stone Look Laminate Benchtops
- Matt Black Towel Rail & Toilet Roll holder
Electrical
- Victron Energy Electrical System
- BMV-712 Smart Display
- 30A Victron Blue Smart AC Charger
- 30A Victron MPPT Solar Charge Controller
- 30A Victron Orion-TR Smart DC-DC Charger
- 3000W Victron Inverter
- AL-KO Electronic Stability Control
- 3 x 200W Solar Panels
- 2 x 225Ah Lithium Battery
- 2 x Fusion Speakers
- Milenco 900L Power TV Antenna
- 12V & 240V powerpoints at lounge table, kitchen & bedroom
- LED Strip Lighting
- Reverse Camera
- Sirocco Fan above Bed
- Hatches with Extractor Fan in Shower
- Wirelessphone charger (240V & 12V)
- 2 Awning Lights with Amber Insect Repellant
- Starlink Provision
- Sphere Wireless Lighting
Plumbing
- Water Pump
- Hydronic Diesel HWS with Heater
- 2 x 110L Fresh Water Tanks
- 1 x 110L Grey Water Tank
- Water tap at A frame
- 3 Way Kitchen Tap with Water Filter
- Mains Pressure Inlet
- Gas Bayonet Connection
- 2 x 9kg Gas Bottles
- Matte Black Granite Kitchen Sink
Appliances
- Thetford 200L or Dometic 275L Compressor Fridge & Freezer
- myCOOLMAN 3kw Reverse Cycle Air Conditioner (with heating)
- Induction Portable Cooktops x 2
- OGO Composting Toilet
- Ranger Rangehood with touch display
- Sphere 24” LED Smart TV with DVD
- Washing Machine
- Microwave 25L (Plateless)
- Furrion Entertainment Head Unit with NFC, Bluetooth, AM/FM radio & CD Player
FLOOR PLANS FOR THE GRAND CARAVANS PEAK
15’6 Rear Door Straight
WEIGHTS | |
|---|---|
TARE: | 2045 KG |
BALL WEIGHT: | 197 KG |
ATM: | 2800 KG |
PAYLOAD: | 755 KG |
MEASUREMENTS | |
|---|---|
EXTERNAL BODY LENGTH: | 4750 MM |
EXTERNAL WIDTH: | 2440 MM |
EXTERNAL HEIGHT: | 3100 MM |
TOTAL LENGTH: | 7150 MM
|
17’ Rear Door Cafe
WEIGHTS | |
|---|---|
TARE: | 2165 KG |
BALL WEIGHT: | 150 KG |
ATM: | 2800 KG |
PAYLOAD: | 635 KG |
MEASUREMENTS | |
|---|---|
EXTERNAL BODY LENGTH: | 5180 MM |
EXTERNAL WIDTH: | 2440 MM |
EXTERNAL HEIGHT: | 3100 MM |
TOTAL LENGTH: | 7580 MM
|
18’6 Rear Door - L Shape
WEIGHTS | |
|---|---|
TARE: | 2280 KG |
BALL WEIGHT: | 200 KG |
ATM: | 3000 KG |
PAYLOAD: | 720 KG |
MEASUREMENTS | |
|---|---|
EXTERNAL BODY LENGTH: | 5670 MM |
EXTERNAL WIDTH: | 2440 MM |
EXTERNAL HEIGHT: | 3100 MM |
TOTAL LENGTH: | 8070 MM
|
18’6 Rear Door Cafe
WEIGHTS | |
|---|---|
TARE: | 2280 KG |
BALL WEIGHT: | 200 KG |
ATM: | 3000 KG |
PAYLOAD: | 720 KG |
MEASUREMENTS | |
|---|---|
EXTERNAL BODY LENGTH: | 5670 MM |
EXTERNAL WIDTH: | 2440 MM |
EXTERNAL HEIGHT: | 3100 MM |
TOTAL LENGTH: | 8070 MM
|
19’6 Centre Door Cafe
WEIGHTS | |
|---|---|
TARE: | 2572 KG |
BALL WEIGHT: | 130-211 KG |
ATM: | 3500 KG |
PAYLOAD: | 928 KG |
MEASUREMENTS | |
|---|---|
EXTERNAL BODY LENGTH: | 5970 MM |
EXTERNAL WIDTH: | 2440 MM |
EXTERNAL HEIGHT: | 3100 MM |
TOTAL LENGTH: | 8370 MM
|
19’6 Centre L Shape
WEIGHTS | |
|---|---|
TARE: | 2572 KG |
BALL WEIGHT: | 130-211 KG |
ATM: | 3500 KG |
PAYLOAD: | 928 KG |
MEASUREMENTS | |
|---|---|
EXTERNAL BODY LENGTH: | 5970 MM |
EXTERNAL WIDTH: | 2440 MM |
EXTERNAL HEIGHT: | 3100 MM |
TOTAL LENGTH: | 8370 MM
|
19’6 Rear Door Cafe
WEIGHTS | |
|---|---|
TARE: | 2572 KG |
BALL WEIGHT: | 130-211 KG |
ATM: | 3500 KG |
PAYLOAD: | 928 KG |
MEASUREMENTS | |
|---|---|
EXTERNAL BODY LENGTH: | 5970 MM |
EXTERNAL WIDTH: | 2440 MM |
EXTERNAL HEIGHT: | 3100 MM |
TOTAL LENGTH: | 8370 MM
|
19’6 Rear Door L Shape
WEIGHTS | |
|---|---|
TARE: | 2572 KG |
BALL WEIGHT: | 130-211 KG |
ATM: | 3500 KG |
PAYLOAD: | 928 KG |
MEASUREMENTS | |
|---|---|
EXTERNAL BODY LENGTH: | 5970 MM |
EXTERNAL WIDTH: | 2440 MM |
EXTERNAL HEIGHT: | 3100 MM |
TOTAL LENGTH: | 8370 MM
|
22’ Rear Club, Centre Ensuite
WEIGHTS | |
|---|---|
TARE: | 2619 KG |
BALL WEIGHT: | 200 KG |
ATM: | 3500 KG |
PAYLOAD: | 881 KG |
MEASUREMENTS | |
|---|---|
EXTERNAL BODY LENGTH: | 6710 MM |
EXTERNAL WIDTH: | 2440 MM |
EXTERNAL HEIGHT: | 3100 MM |
TOTAL LENGTH: | 9110 MM
|
REVIEWS FOR GRAND CARAVANS
100% Australian made & owned
3 Year Structural Warranty
2 Year Australia Wide General Warranty
Industry-Leading After Sales Service
TRYING TO KEEP YOUR WEIGHTS DOWN?
Composite Caravans – The Future of Stronger, Smarter Travel
Why Go Composite?
Durable, Lightweight, and Ready for Anything
Composite-built caravans stand miles ahead of traditional timber-framed models. Unlike wood, composite panels don’t warp, rot, or invite termites, giving your van long-lasting strength and reliability in even the harshest environments.
Because the panels are lighter than conventional materials, towing becomes easier and more economical. Less weight means lower fuel consumption, less strain on your vehicle, and a safer, smoother drive—ideal for long road trips or rugged off-road tracks.
There’s also a comfort advantage: composite walls provide superior insulation against both heat and noise. Your van stays cooler in the Aussie summer, warmer in winter, and quieter wherever you park up.
What Exactly Are Composite Panels?
Instead of relying on heavy wooden or aluminium frames, composite caravans use sandwich-style panels. These are built by bonding a rigid, high-density foam core between two protective outer skins—often fibreglass. The outcome is a frameless caravan body that’s ultra-strong, highly weather-resistant, and naturally insulated.
In comparison to old-school plywood or meranti, composite construction is rot-proof, water-resistant, and far more suited to Australian conditions. The reduced weight also translates to more payload capacity for your gear and an overall more enjoyable touring experience.
Meet Aeroglass – Our Advanced Composite System
At Grand Caravans, we’ve gone beyond standard composite design with our exclusive Aeroglass panels. This next-generation technology pushes caravan construction into a new era of strength and performance.
Each Aeroglass panel is crafted from three precision-engineered layers:
Outer Layers: 1.6mm GRP (Glass Reinforced Polyester) fibreglass, chosen for its toughness, impact resistance, and long-lasting finish.
Core: High-strength XPS (Extruded Polystyrene) foam—25mm thick in side and back walls, 35mm in the front and roof. This closed-cell structure delivers superb insulation and rigidity without absorbing moisture.
Our 400 kPa rated XPS outperforms the standard grades used elsewhere, providing superior load-bearing capability and longevity. It won’t soak up water, keeping your caravan lightweight, thermally efficient, and free from rot no matter where your travels take you.
Why Aeroglass Stands Apart
Aeroglass is more than just a building material—it’s a complete rethinking of caravan construction. With its advanced thermal and acoustic properties, reduced weight, and uncompromising durability, Aeroglass gives you confidence on every journey.
Whether you’re tackling corrugated outback tracks or cruising the coast, an Aeroglass caravan from Grand Caravans offers:
Lightweight towing with outstanding strength.
All-weather durability for Australian conditions.
Better comfort inside through thermal and noise control.
Long-term reliability that protects your investment.
It’s not simply an improvement on traditional methods—it’s the future of caravanning.
